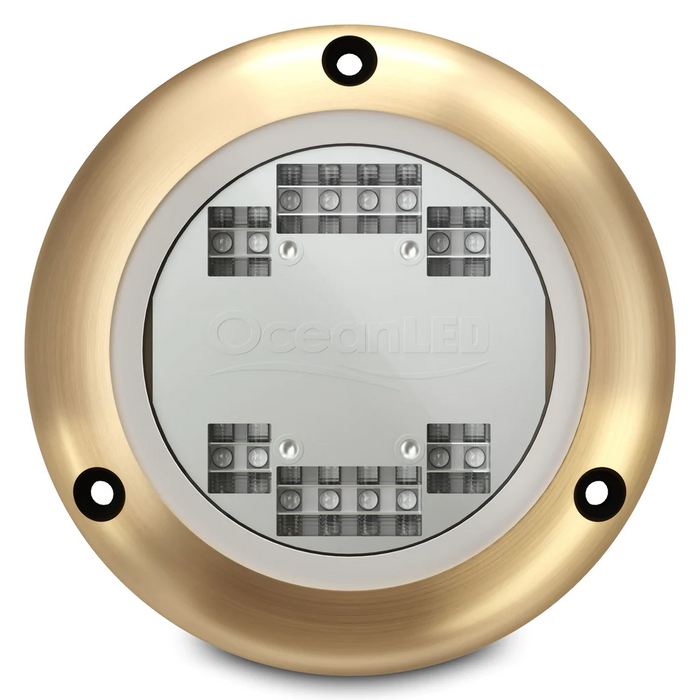

Packing an impressive 5,000 fixture lumens into a low profile, compact design with Midnight Blue and Ultra White light options.
Advanced optics, designed exclusively by OceanLED, offer a truly striking 90- Degree top beam angle with a focused 20- Degree side beam angle providing greater water penetration and a significantly larger area illuminated without any loss.
20% brighter than its competitors, illuminating a significantly larger area.
60% narrower focused side beam angle providing greater water penetration.
True 90- Degree beam angle with no fading at the edge gives better illumination.
11,600 LUMENS / 5,000 FIXTURE LUMENS
Best-in-class performance from this ultrabright light makes it the obvious choice for those who want to stand out from the crowd.
90- Degree/20- Degree BEAM ANGLE
A true wide-angled, focused beam lights up a large area of the water.
COMPACT AND SIMPLE DESIGN
Made from corrosion resistant Alu Bronze, there is a lot packed into this 10cm light.
SIMPLE TO INSTALL
12.5mm hole in the hull to feed the cable through and 3 screws to hold in place. No bonding required.
EASY TO CLEAN Thanks to its Tritonium coating, a simple wipe of the lens removes any underwater growth, saving hours of scrubbing each time you use it.
FISH-STROBE MODE Exceptionally bright, randomised strobing of the light is proven to attract more fish and catch more bait.
ACTIVE THERMAL CONTROL ATC prevents overheating. In the event of overheating the ATC system will reduce the LED power level in order to protect the LEDs, or in extreme cases, turn off the fixture completely.
FEATURES
- 90 Degree Top Beam Angle
- Up to 5000 Fixture Lumens
- 20 Degree Side Beam Angle
- Rectangular Beam
- True 90- Degree beam angle with no fading at the edge gives better illumination.
- 62% narrower focused side beam angle providing greater water penetration.
- 20% brighter than its competitors, illuminating a significantly larger area.
- Compact and simple design
- Simple to install
- Easy to clean
- Fish-Strobe Mode
COLOURS AVAILABLE
- Midnight Blue
- Ultra White
BOX CONTENTS
Sport Series LED Light and Cable
In-line Fuse Kit
Mounting Screws
Quick Install Guide
TECHNICAL
| Lumens | 11600 |
| Fixture Lumens | 5000 |
| Typical LED life expectancy | 40,000+ Hours |
| Minimum-Maximum operating voltage DC | 9-32V DC |
| Current / Amp draw (DC) | 12V DC 5.5A / 24V DC 2.4A |
| Driver type | Internal |
MOUNTING RECOMMENDATIONS
| Boat size | up to 65' (20m) |
| Transom / Hull spacing | 2-4' (0.5-1.2m) |
| Transom quantity | 2-6 |
| Installation depth (to top of fixture) | 8-10" (20-25cm) |
PHYSICAL
| Total weight | 0.70kg |
| Extension cable length (standard) | 9.84' (3m) |
| Hole cut-out for cable entry | 1/2"� (12.5mm) |
| Material | AB2 Aluminium Bronze |
